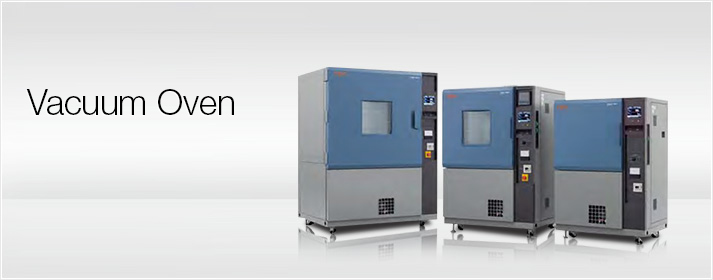

Vacuum Oven
VAC series
Fundamental equipment for electronics production
These units has been exclusively designed for vacuum heat treatment such as defoaming, deaerating, hardening or drying, essential processes in the production of electronic components.
Eco model
Thanks to improved air-tightness and sealing capacity, the chamber achieves 20 to 40% savings in energy consumption. (Compared to previous model)
Program operation
Control programs possible by combining temperature and 5 pressure operation modes.
Variety of options
More than 20 options are available to meet customers' needs.
Specifications
Model Temperature & pressure range Inside / Outside dimensions (mm) VAC-101P +40 to +200°C (+104 to +392°F) / 933 to 1×102Pa W450×H450×D450 / W902×H1392×D780 VAC-201P W600×H600×D600 / W1052×H1532×D930 VAC-301P W800×H800×D800 / W1252×H1772×D1130
LCV series
Specifications
Model Temperature & pressure range Inside / Outside dimensions (mm) LCV-234 Ambient temperature to +200°C (+392F） / (Gauge) 0 to -101kPa W450×H450×D450 / W670×H890×D735 LCV-244 W550×H550×D550 / W770×H990×D835
